The biggest geotechnical engineering company in Israel
Mini Piling
Slope Stabilization
Rock Bolting
Checking & Locking Anchors
Underwater Ground Anchors
Polymer Ground Anchors
Removable Ground Anchors
Permanently Ground Anchors
Temporary Ground Anchors
?Interested in a bid for ground anchors
One-Click Contact
Our Services

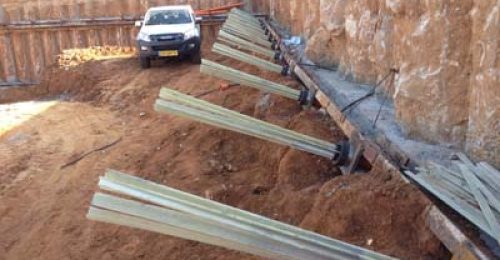

Polymer Ground Anchors
A polymer anchor is usually made of fiberglass, therefore it has a high tensile strength, but on the other hand has weakness to shear forces. Nowadays in Israel they are used mainly in projects bordering a land of a future railway tunnels, because they will not pose a future danger for the tunnel mining machine (TBM) and can be left in the ground
Removable Ground Anchors
Removable anchor is the flagship anchor of our company! Self-developed and produced for the first time in the world with great success in 2008. In many projects, the anchors must be removed when the construction is done, in order to avoid disturbance for future drillings. We developed a method and special equipment for retrieving all the steel tendons after the project is completed
Permanently Ground Anchors
It remains in the ground for the entire lifetime of the structure. The duration of function intended for this anchor is up to 120 years. Use of fixed ground anchors is made when there is no element designed to replace these anchors in carrying the horizontal forces
Temporary Ground Anchors
A temporary ground anchor is an anchor designed for a period of up to 24 months hence its name. Temporary anchors are designed to carry the horizontal ground loads until the casting of the ceilings is completed which replaces the anchors in carrying the loads and in fact at this point in time their function ends

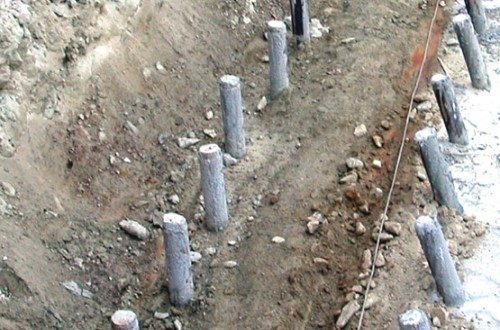

Mini Piling
Mini piles are used for laying foundations where ground conditions are variable or when the access is limited by transferring the load to a solid ground. The conventional diameter of mini piles is between 150mm. and 300mm. they can extend to depths of 15 meters and bear a capacity of 100 tons

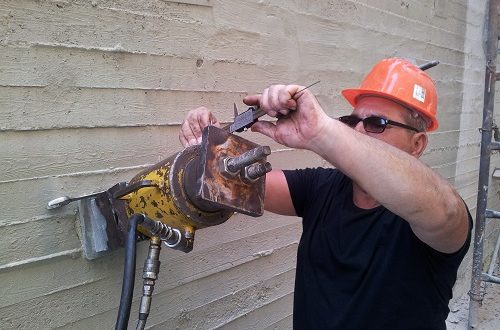

Checking & Locking Anchors
Anchor inspections will be performed to prevent cases such as pulling the anchors out of the borehole and collapsing walls. Our company performs various anchor tests, such as:
residual load test, anchor elongation test, re-locking anchors and performing test anchors
Rock bolting
Rock bolts and soil nails are used to stabilize slopes and retaining walls by screwing long rods into the supported wall. Soil nail walls are much more cost effective and efficient than concrete gravity walls and ground anchor walls
Underwater Ground Anchors
When building deep underground parking complexes, there is sometimes a need to build shoring systems under hydrostatic pressure from groundwater. In such conditions, special anchors which ensure full sealing and prevent groundwater from entering the construction are required
Many years of projects with the largest companies and entities in Israel
About the Company
Ducovny Ground Anchors Ltd. is one of the leading soil engineering companies in Israel. The company has extensive experience in geotechnics techniques and particularly in ground anchoring. Our company is a subsidiary of M. Duchovni Engineering and Projects Ltd. which was established in 2001.
Our company fleet has dozens of drilling machines in various sizes and weights, some made by the leading German company Hütte and some by the unique development in self-production of the Ducovny team, specializing in building efficient equipment systems consisting of modular elements built and adapted to any project, whether small or huge. The wide variety and large amount of machines allows our company to drill a large number of drills simultaneously and to do all underground anchoring work quickly, efficiently and professionally.
Our company has many years of geotechnical experience we use to collaborate with government companies, the Ministry of Defense, Netivei Israel, Israel Railways, NATA and many more. Today the company drills and performs thousands of anchors every month.
The company manufactures and assembles various types of ground anchors which are supplied from its computerized plant located in the Beit Yehoshua industrial area. The anchors in our factory are manufactured in accordance with the Israeli standard I.S. 940, with an emphasis on the use of the highest quality components and management in a controlled and thorough manner without compromise by the best engineers in the industry. The result is quality ground anchors of all types and at different loads to the satisfaction of all its customers' requirements.
The company's management methods, its professional capabilities and the adaptation of the equipment to unconventional requirements also contribute to its efficiency in relation to its competitors in the world of earth engineering in Israel.
IT'S IMPOSSIBLE TO BE NUMBER 1 WITHOUT A WINNER TEAM
Our company is made up of unique people who over the years have joined our large family.
Engineers, technicians, manufacturing workers, developers, office staff, drilling crews, anchoring crews, welders, drivers, draftsmen and many others, all work together in complete synergy and in a supportive family atmosphere.
Under the unique management method of Michael Duchovny, a master of soil engineering and one of the best-known experts in Israel and the world in the field of geotechnics, over the years he has built a winning team known for its ability to solve any engineering problem, even the most complex ones. Because of the team's innovative, professional and creative abilities, Ducovny is known as a company that knows how to complete the ground anchoring work completely when it is carried out responsibly and quickly.
The Ducovny team is happy to take on any project, from the smallest to the most challenging, and in order to be a leader in the soil engineering industry in Israel and around the world, the team constantly continues to develop new capabilities, innovative products and advanced self-manufacturing drilling machines. These capabilities are reflected in the field and in the preliminary work for each and every project.
We advocate that "to be the # 1 company you need a winning team" is not just a slogan, but something to be believed and lived by. And we believe.
Our Projects
We are proud to present some of the projects in which we took part in carrying out the ground anchoring work. The projects took place in a variety of terrain routes, soil types and in different weather conditions all over the country, which makes each project and project unique in its requirements. The company staff thanks all our customers and is always happy to be at your service. Not our customers yet? We are always happy to hear about new projects, from small and simple projects to large and challenging projects.Contact us and we will be happy to help.
Municipal Parking BBC Center, Bnei Brak
Municipal Parking BBC Center, Bnei Brak

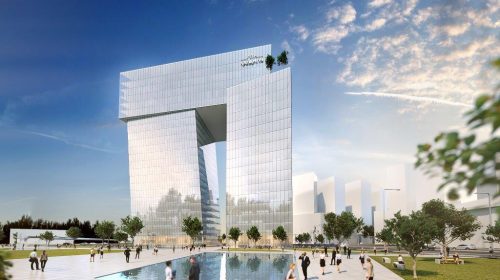

1000 Complex, Rishon LeTsiyon
1000 Complex, Rishon LeTsiyon

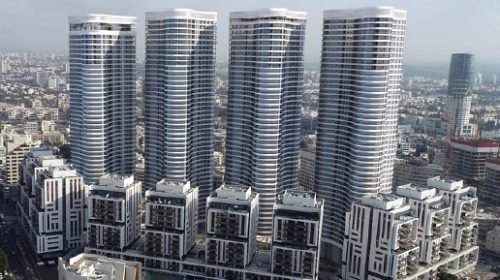

Gindi TLV, Tel aviv
Gindi TLVTel aviv

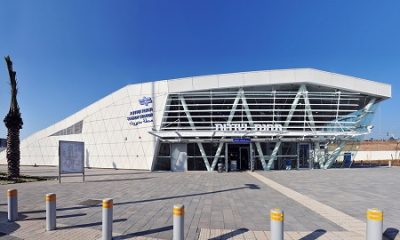

Train station, Sderot
Train station, Sderot
